Description
FRAME : Alloy Frame / Virtual 4 link kinematic VLK
27.5″ and 29″ compatible / geo adj. / Boost 148x12mm
140mm travel / Bosch Gen4 / Integr. removable Battery
Tapered Headtube E2, Central Kickstand Mount
Range Booster Ready
DISCUSSION Front: 140mm / Rear: 140mm

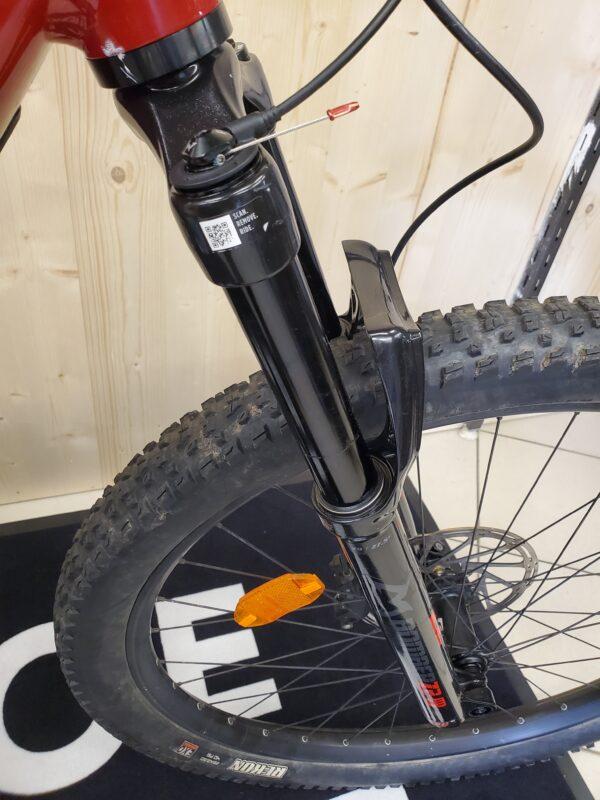

FORK : Marzocchi Z2 Air / eMTB+
Rail 3 / 3-Modes / 15x110mm QR axle / tapered steerer
44mm offset / Reb. Adj. / Lockout / 140mm travel

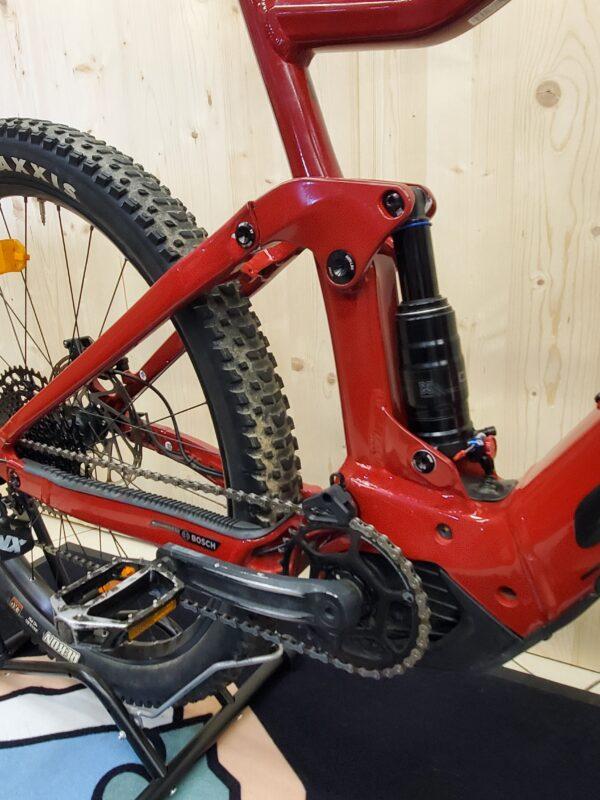

DAMPER REAR : X-Fusion NUDE Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Lockout-Traction Control-Descend
Reb. Adj.
Travel 140-90-Lockout / 185x50mm
CONTROL LEVER : SCOTT TwinLoc Suspension System
3 modes front and rear / integ. Grip clamp
ENGINE : Bosch Performance CX
EU: 25kmh / INT: 20mph
BATTERY : PowerTube 625Wh
SCREEN : Bosch Purion
LOADER : 4A Charger
REAR DERAILLEUR SRAM NX Eagle / 12 Speed
DERAILLEUR LEVERS SRAM SX Eagle Single Click
PEDALS FSA CK-320 / 165mm / 34T
PLATEAU SRAM Eagle 34T DM / Steel
CHAIN SRAM SX Eagle
CASSETTE SRAM PG1210 / 11-50 T
BRAKES Shimano BR-MT520 4 Piston
BRAKE DISC Front: SM-RT64 CL 203mm / Rear: RT-EM600 CL 203mm
HANGERS Syncros Hixon 2.0 Rise / Alloy 6061D.B.
20mm rise / 8° / 760mm
Syncros Comfort lock-on grips
POTENCE : Syncros FL2.0 / 6061 Alloy
L-Shape Spacer & Top Cap / 31.8mm / 6° / 1 1/8″
SADDLE ROD : Syncros Duncan Dropper Post 2.5
31.6mm / S size 100mm / M size 125mm / L size 150mm / XL size 170mm
SADDLE : Syncros ER2.5
HEADSET : Syncros ER2.0 Press Fit E2 / Tapered 1.5″-1 1/8″
OD 52/62mm / ID 44/56mm
FRONT HUB : Formula CL-811 / 15x110mm
REAR HUB : Formula CL-148S / Boost 148x12mm
RAYONS Stainless Black
JANTE : Syncros MD30 / 32H / 30mm / Pin Joint
Tubeless ready
FRONT TIRE : Maxxis Rekon / 29×2.6″ / 60TPI Wire Bead
EXO
Dual
REAR TIRE : Maxxis Rekon / 29×2.6″ / 60TPI Wire Bead
EXO
Dual
LIGHTING : Bosch Light Cable pre-installed F&R
WEIGHT GLOBAL Total weight: 128 kg . Total weight includes bike, rider, equipment and extra luggage.
